Velbus Din Rail Transformer for Velbus system VMBTR1

Velleman
VMBTR1
5410329395759
    1-5 Days
  • Description
  • More Details

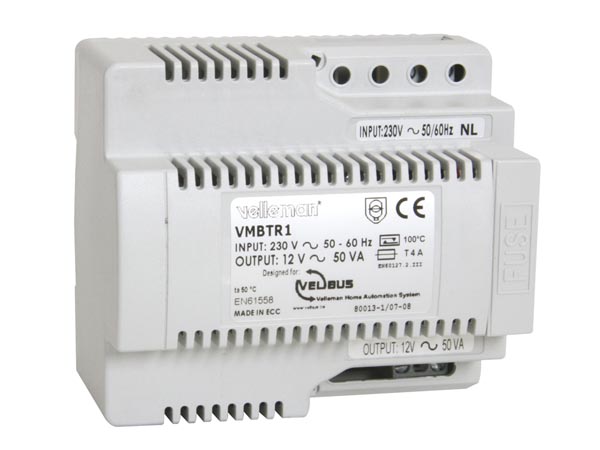

The Velbus VMBTR1 transformer mounts directly on to the DIN-Rail used to secure all the Velbus control modules. This transformer is connected directly to VMB3PS

Specifications

  • rated Input Voltage: 230 Vac
  • rated Frequency: 50Hz
  • secondary: 12Vac - 50VA
  • max Ambient Temperature: 50°C
  • thermal protection: 100°C
  • standard DIN-rail housing: 6 modules
  • safety standard: EN 61558
  • dimensions: 105 x 93 x 66,5mm
