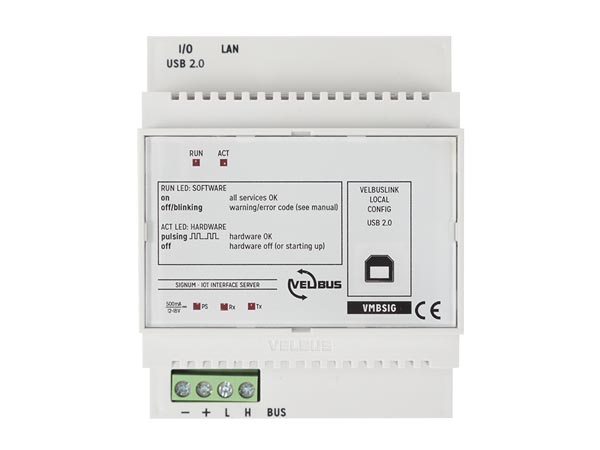

The Velbus Signum is an IoT Gateway for the Velbus home automation system. Its main functions are: • to control your Velbus installation using an iOS app, Android app or browser on mobile devices (smartphone, tablet...) • periodically sync the time on your Velbus installation with an NTP server • time and date backup (48 hours) in case of power failure • connect VelbusLink (Velbus configuration software) directly (with a USB cable plugged into the Velbus Signum, or an IP (LAN) connection) • secure access to your Velbus Signum and home automation system from anywhere in the world In the near future, the following functions will also be available: • IoT gateway to allow integration/communication with other protocols • advanced visual configuration of your Velbus installation (and connected systems) • manually or periodically back-up your local Velbus project/settings on the Velbus Signum The Velbus Signum is a DIN-rail module that is powered by and connected directly to the Velbus bus.
carrier board with Computer-on-Module (COM) (RPI CM3+/16GB) • RJ45 Ethernet port (10/100 Mbps) • onboard USB A 2.0 host port (500 mA) • onboard USB B 2.0 slave galvanic insulated Velbus configuration port • a USB micro 2.0 console port • onboard micro SD card slot for flash storage • master clock for Velbus system with 48-hour time and date backup in case of power outage • onboard CAN terminator switch • PS (Power Supply), RX (CAN Receive), TX (CAN Transmit), RUN and ACT status LEDs • DIN Rail mount and Velbus connector
