Remote Control

!
Velleman
5410329065010
1-5 Days
K6501
Weight: kg

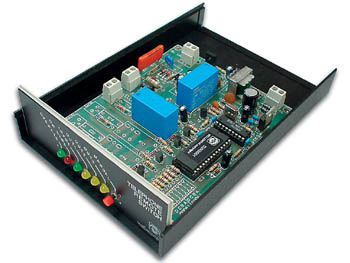

Remote Control by Telephone Kit K6501

  Constructional Kit: Average
This kit makes it possible to turn up to three devices on or off over the telephone. It is also possible to check the condition of a switch (open or closed). Example : when you are away on holiday, you may switch the lights on and off from time to time, check the alarm or turn on the heating before returning home. A major advantage of this circuit lies in the fact that audio signals are used to tell whether a specific output has been turned on or off. Operation is protected by a user defined code, which is simply keyed in from the telephone keypad.
Dimensions: 105 x 130mm (PCB)
Power Supply: 12Vac / 300mA
Velleman
5410329067076
1-5 Days
K6707
Weight: kg

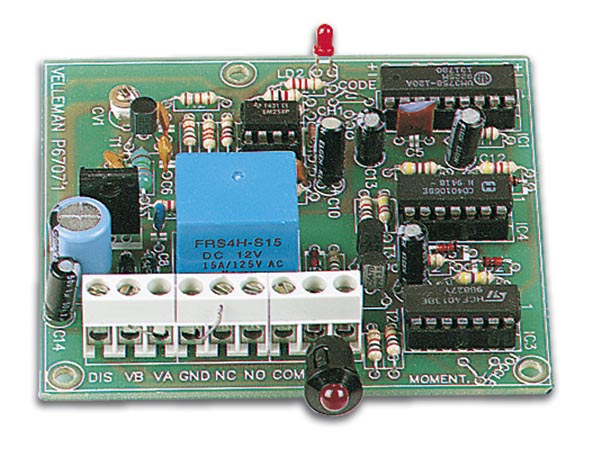

1-Channel RF Code Lock Reciever Kit K6707

This one channel RF code lock receiver was designed to work with the old K6706B or K6706G transmitters however will also work with K8059 / VM130T with limited compatibility. The ideal remote control of all kinds of applications where a device can be controlled from a distance. Some applications : garage doors, car alarms and / or central door locking systems, as well as for wireless operation of in-door or out-door lighting, etc. A choice can be made from over 8000 codes. It is also possible to use several receivers with one transmitter or vice versa.
Velleman
5410329067274
1-5 Days
K6727
Weight: kg

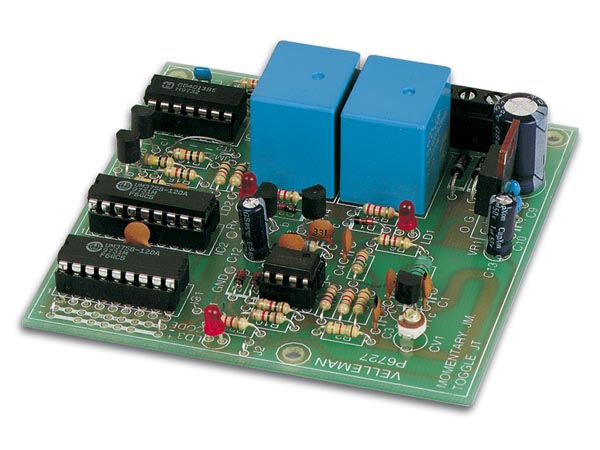

2-Channel RF Code Lock Reciever Kit K6727

This two channel RF code lock receiver forms the ideal remote control of all kinds of applications, where 2 different devices can be controlled on a distance. A choice can be made from over 8000 codes. It is also possible to use several receivers with one transmitter or vice-versa. Originally designed to work with the old K6706B or K6706G transmitters however will also work with K8059 / VM130T with limited compatibility.
Dimensions:
Power Supply: 2 x 9Vac or 12-16Vdc / 120mA
Velleman
5410329080235
1-5 Days
K8023
Weight: kg

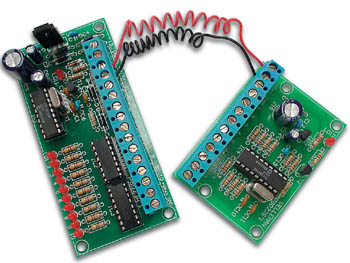

10-Channel, 2-Wire Remote Control Kit K8023

  Constructional Kit: Average
This kit allows you to control up to 10 devices using only 2 wires at a long distance. Microprocessor controlled. Inputs can be push-buttons, switches or open collector outputs from another device. The receiver section provides 10 open collector outputs that allow you to control relays directly. Terminal block connectors for all input and output connections are included. All outputs are provided with LED indication. Can be used with kits K8000, K8006 and can be connected to our standard relay card : K6714 or K6714-16.
Dimensions: 70 x 50 x 16mm (Controller)
103 x 50 x 24mm (Receiver)
Power Supply: 12-15Vac or dc / 300mA
Velleman
5410329239190
1-5 Days
K8049
Weight: kg

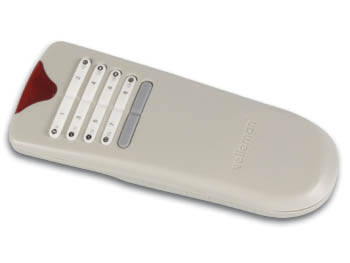

15-Channel IR Transmitter Kit K8049

  Constructional Kit: Average

A Infra red transmitter compatible with: K6711,  K6713, K8046, K8050, MK161, MK163. 4 addresses allow the use of multiple receivers in one room.

Dimensions:
Power Supply: 3 x 1.5V Batteries (AAA)
Velleman
5410329241810
1-5 Days
K8050
Weight: kg

15-Channel IR Receiver Kit K8050

  Constructional Kit: Average

An infra red receiver kit which works together with K6710, K8049, K8051, K8055, K8056, K6714, K6714-16, K2633. 15 open collector contacts: max. 50V/50mA, LED indication for each output, multiple IR sensors possible (type : IR38DM)

Dimensions: 71 x 114mm (PCB)
Power Supply: 8-14Vdc or 2 x 6-12Vac / 150mA
Velleman
5410329241827
1-5 Days
K8051
Weight: kg

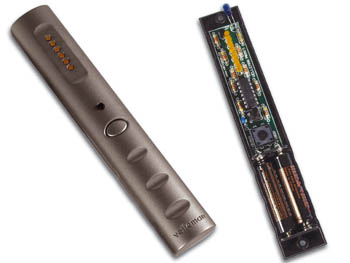

15-Channel IR Remote Stick Kit K8051

  Constructional Kit: Average
The K8051 15-channel IR Remote Stick features a sleek designer enclosure with just 2 buttons, yet it provides access to a stunning 45 channels (3 addresses with 15 channels each). The built-in 'all clear'-function allows the user to turn-off all channels of the current address at the same time. Channel and address selection is straightforward and easy. Even in total darkness you can select the correct channel and operate the remote.
Dimensions: 160 x 27 x 23mm
Power Supply: 2 x 1.5V Batteries (AAA)
Velleman
5410329315351
1-5 Days
K8057
Weight: kg

2-Channel RF Remote Receiver with Random Code Kit K8057

  Constructional Kit: Average

Two relay contact outputs with toggle or pulse function selectable per output. Pulse function with turn off timer. Can learn a unique 32-bit code from the K8059 and VM108 transmitters, store up to 31 transmitters. No hardware settings required, full software control. Code memory can be erased for safety purposes. LED indicators for outputs and functions. Special function in pulse mode: both outputs can be set simultaneously when the two transmitter buttons are pressed at the same time. Suitable for various control applications e.g. garage door, door to your home, lights, car...

Dimensions: 100 x 82mm (PCB)
Power Supply: 9-12Vac or dc / 100mA
Velleman
5410329315214
1-5 Days
K8058
Weight: kg

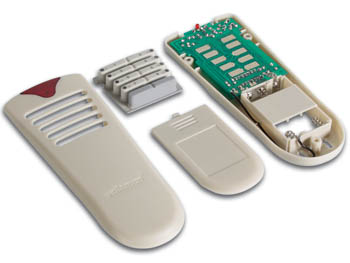

8-Channel RF Remote Control Kit K8058

  Constructional Kit: Average

An RF remote transmitter with 8 addresses allow the use of multiple receivers. Features: 'all clear'- function, toggle or momentary mode for each key, open-field range up to 50m, rubber keypad. Enclosure included.

Dimensions: 150 x 58 x 20mm
Power Supply: 3 x 1.5V Batteries (AAA)
Velleman
5410329312046
1-5 Days
K8059
Weight: kg

2-Channel RF Code-Lock Remote Transmitter Kit K8059

  Constructional Kit: Advanced

A key fob style RF transmitter which generates unique 32-bit code with more than 1,000,000,000 codes available. Code can easily be changed for safety purposes. Choose continuous or 'burst' transmission. LED indicator. Enclosure included.

Dimensions: 63 x 40 x 16mm
Power Supply: 12V Battery (23A)
