Shields

Plug in (on) shields for development boards

!
Whadda
5410329730208
1-5 Days
VMA01
Weight: kg

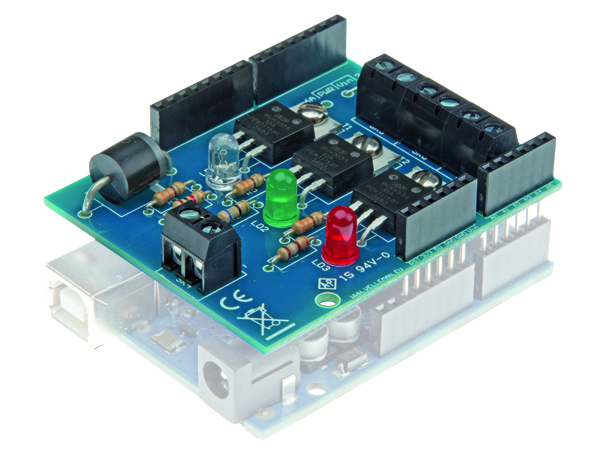

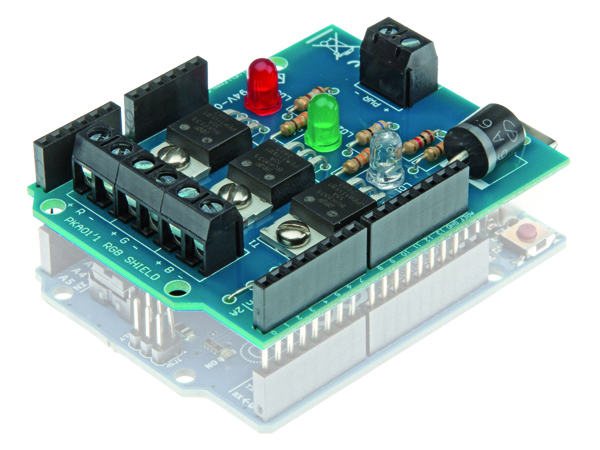

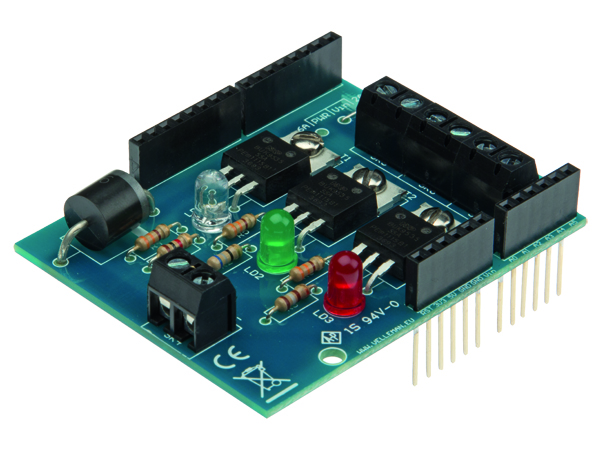

Velleman RGB Shield for Arduino VMA01

Whadda WPSH01

This Velleman Arduino Shield can Control 3 dimmer channels (1 x RGB or 3 single channels) with Arduino™ UNO. Downloadable example sketch, stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included)
Dimensions: 75 x 55 x 25mm
Power Supply: 12 or 24V External
Whadda
5410329730215
1-5 Days
VMA02
Weight: kg

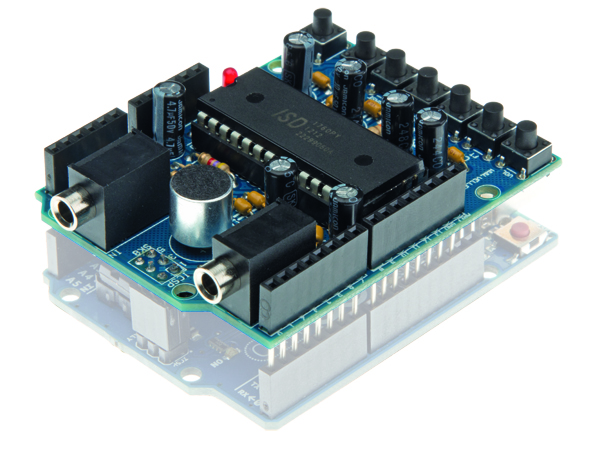

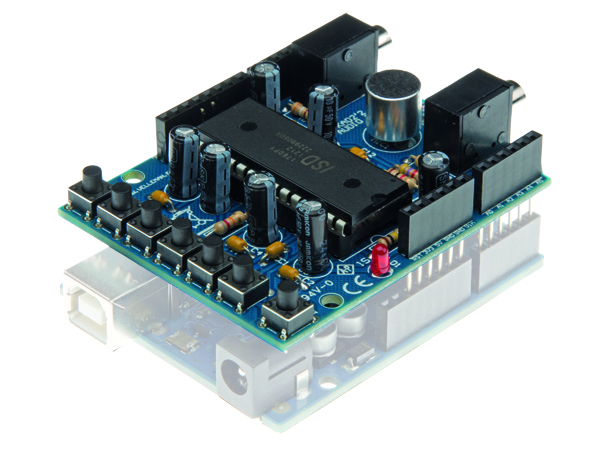

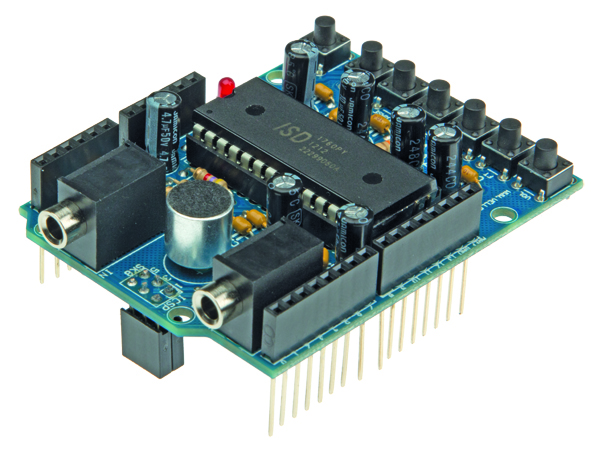

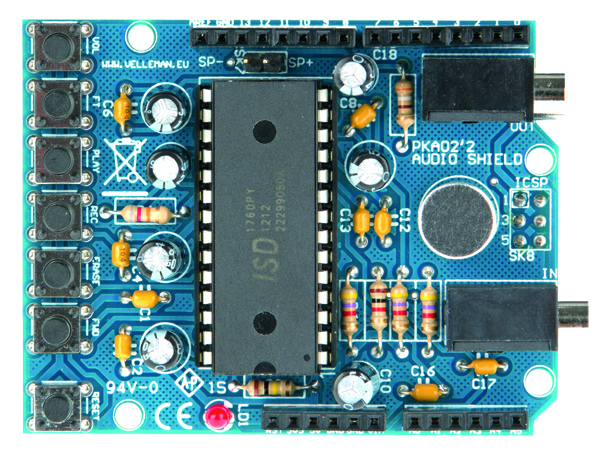

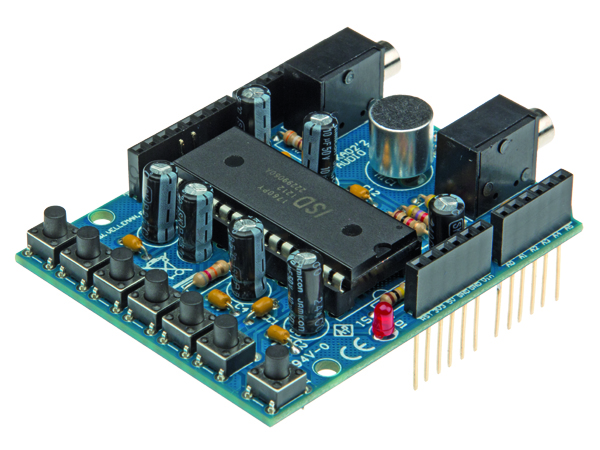

Velleman Audio Shield for Arduino VMA02



 New - Now Available

 module  Module: Pre-assembled

The Velleman Arduino Shield - Audio interface for Arduino™. Record your voice via a built-in microphone or a line input. 60 second recording time, start playback, record,… via on-board buttons or via Arduino™ UNO. Playback via a speaker or a line output. Downloadable sample sketch and library. Stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included).

Dimensions: 80 x 55 x 30mm
Power Supply:
Whadda
5410329730222
1-5 Days
WPSH03
Weight: kg

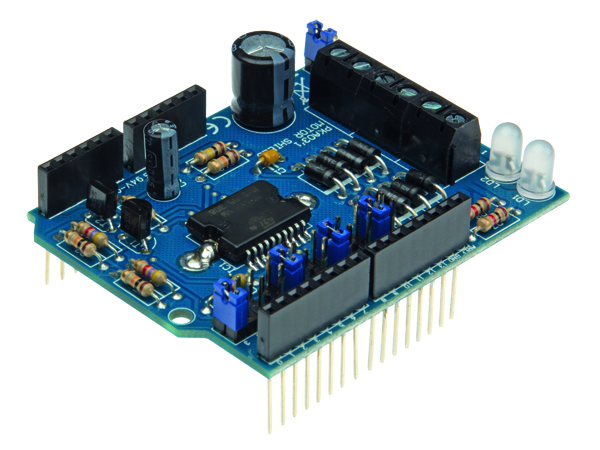

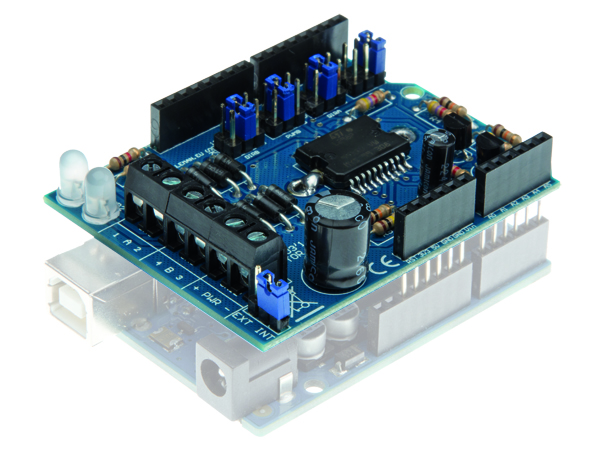

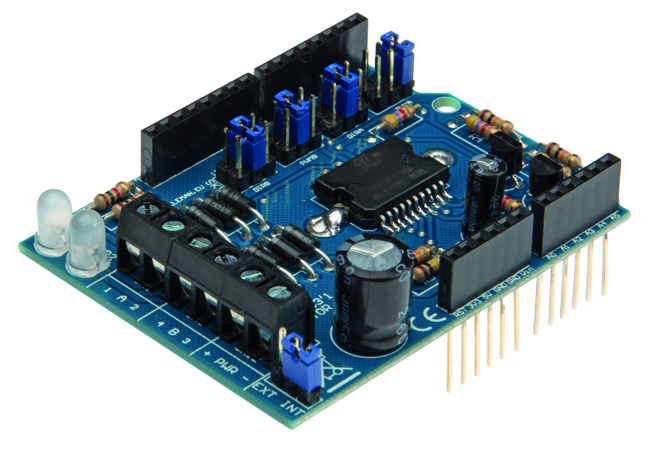

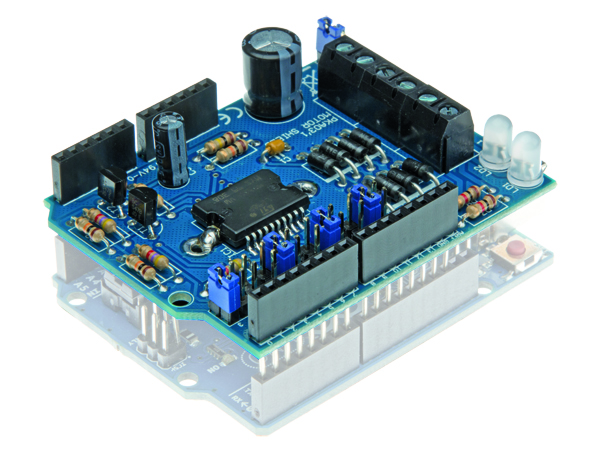

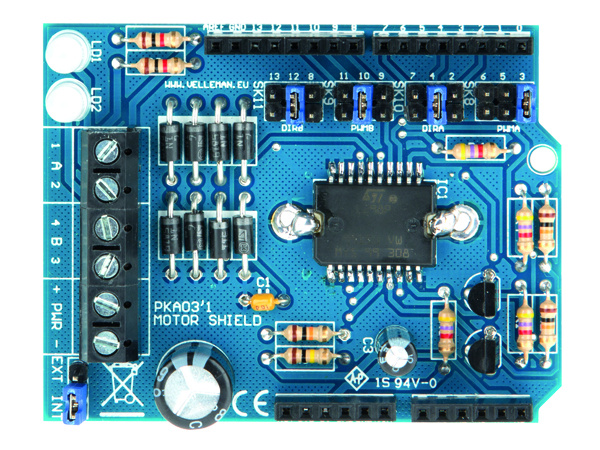

Whadda Motor Power Shield for Arduino WPSH03

Replacement for Velleman VMA03



WHadda WPSH03 Arduino Power shield that can drive: relays, solenoids, DC and stepper motors. 2 channels, choose between an external or internal (Vin) power supply. Based on the dual full bridge driver L298P. Downloadable sample sketch. Stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included).
Dimensions: 75 x 55 x 30mm
Power Supply:
Whadda
5410329730239
1-5 Days
VMA04
Weight: kg

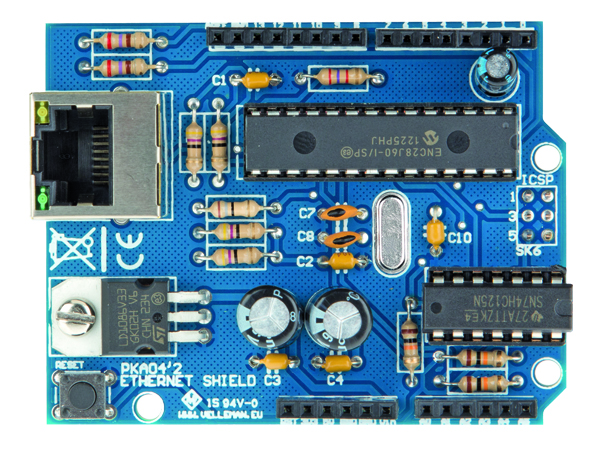

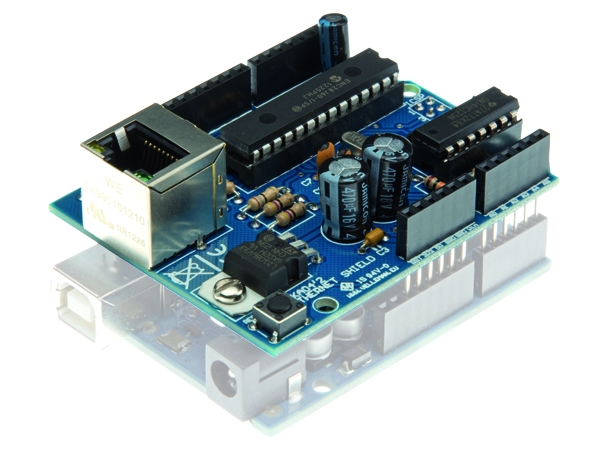

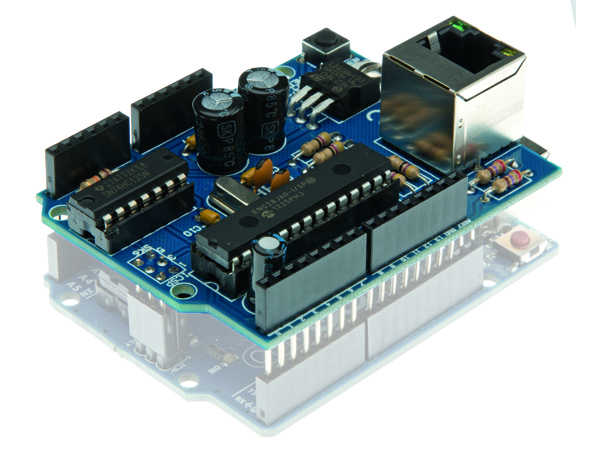

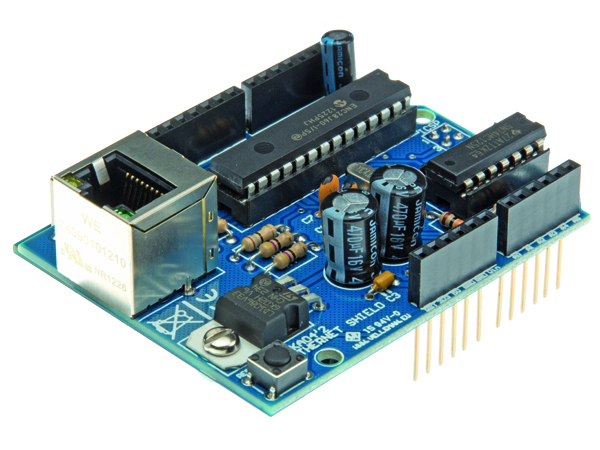

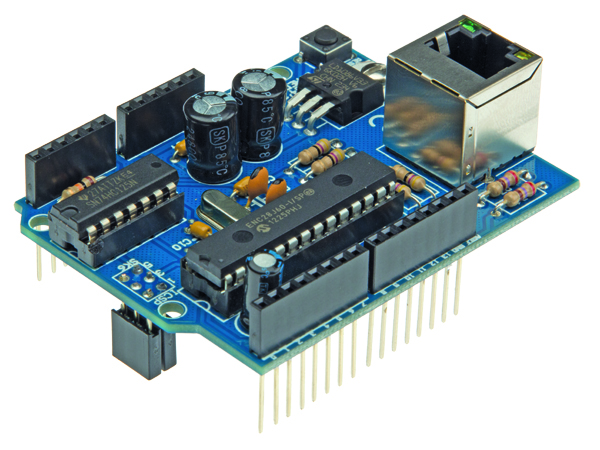

Velleman Ethernet Shield for Arduino VMA04



 New - Now Available

 Module  Module: Pre-assembled

With this Velleman Arduino Shield you can configure your Arduino™ as a simple web server or let it get data from the worldwide web. Based on a Microchip ENC28J60 chip. Downloadable sample sketches and library. Stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included).
Dimensions: 80 x 55 x 30mm
Power Supply:
Whadda
5410329730246
1-5 Days
VMA05
Weight: kg

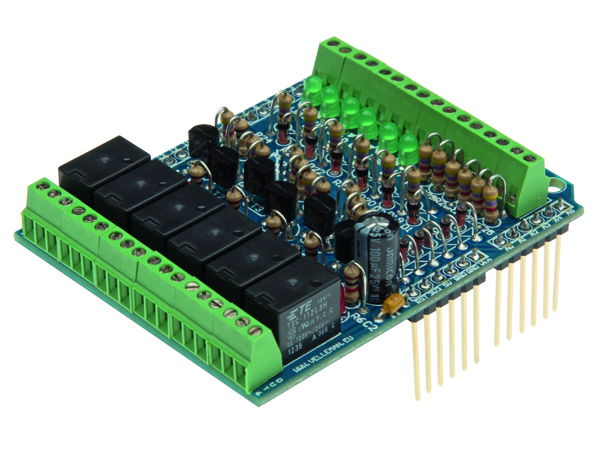

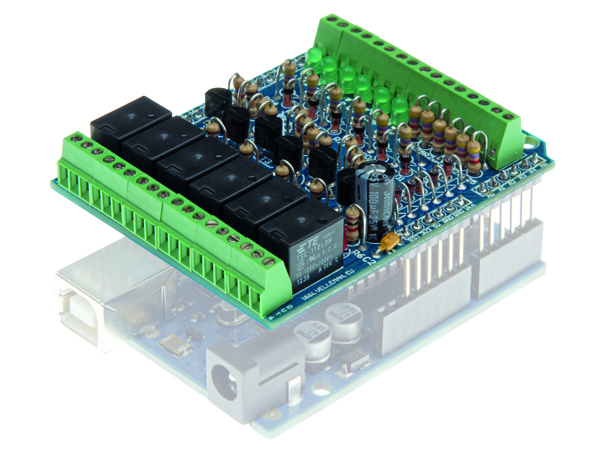

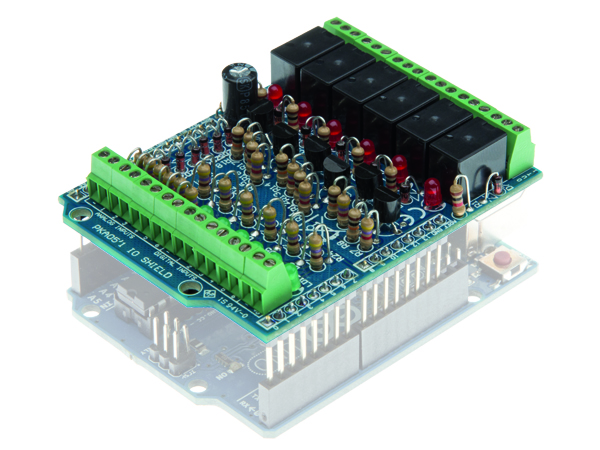

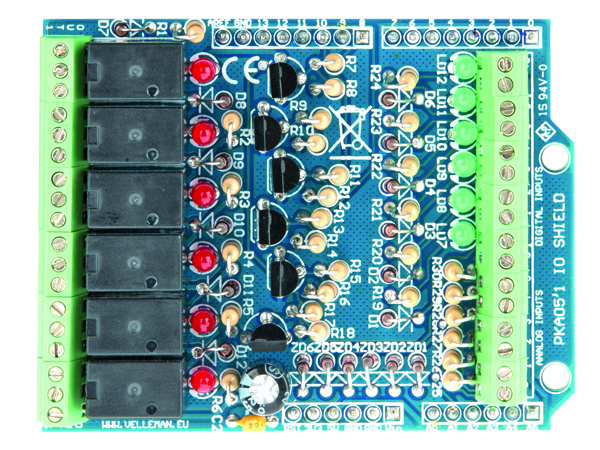

Velleman Input/Output Shield for Arduino Uno VMA05



 module  Module: Pre-assembled

The Velleman Arduino Shield which is a general purpose INPUT - OUTPUT shield for Arduino™. 6 relay outputs, 6 analogue inputs, 6 digital inputs. Downloadable sample sketch. Stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included).
Dimensions: 70 x 55 x 30mm
Power Supply: 12Vdc / 500mA (into Arduino UNO)
Whadda
5410329732974
1-5 Days
WPK01
Weight: kg

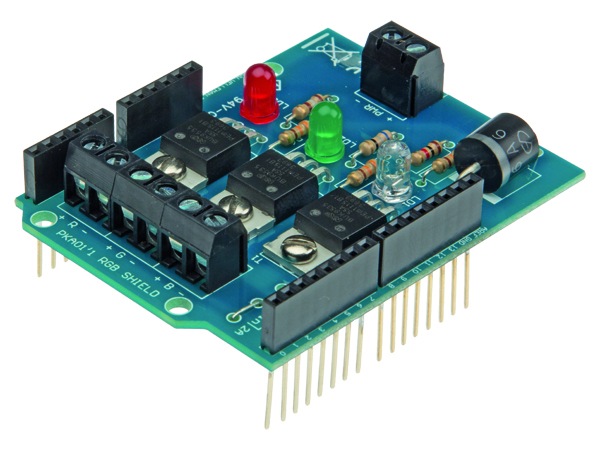

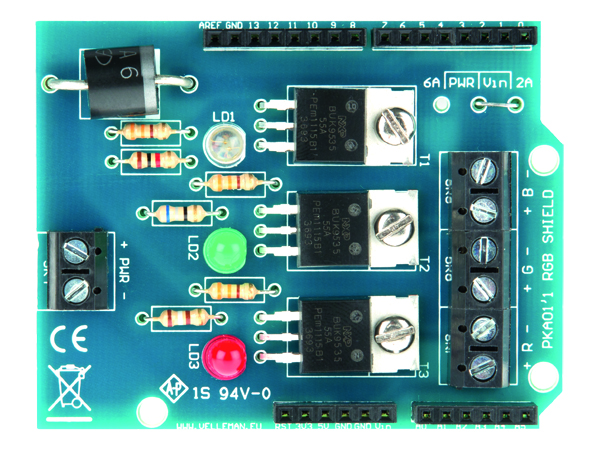

Whadda RGB Shield for Arduino Kit WPK01

Replacement for Velleman KA01

With this Velleman Arduino Shield Kit you can control 3 dimmer channels (1 x RGB or 3 single channels) with Arduino™ UNO. Downloadable example sketch, stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included)
Dimensions: 75 x 55 x 25mm
Power Supply:
Whadda
5410329733001
1-5 Days
WPK05
Weight: kg

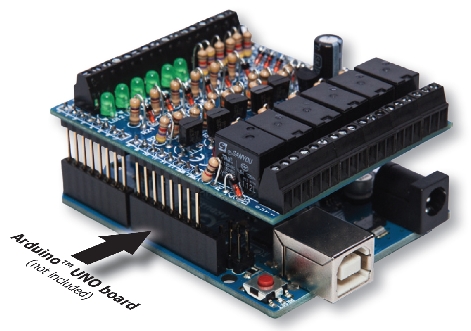

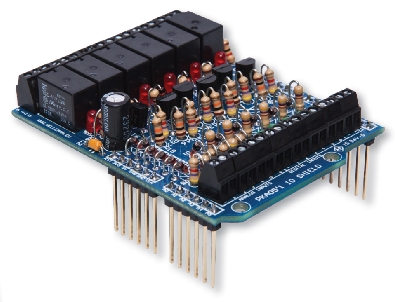

Whadda Input/Output Shield Kit for Arduino UNO WPK05

Replacement for Velleman KA05
The Velleman Arduino Shield kit for the UNO. General purpose INPUT - OUTPUT shield for Arduino™. 6 relay outputs, 6 analog inputs, 6 digital inputs. Downloadable sample sketch. Stackable design: the shield can be stacked with other shields. Requires 1 Arduino™ UNO (not included).
Dimensions: 70 x 55 x 30mm
Power Supply: 12Vdc / 500mA (into Arduino UNO)
Whadda
5410329730185
5-7 Days
WPSH005
Weight: kg

Whadda Power Module Shield for MicroBit®

Replacement for Velleman VMM005
This power module is an extension board for micro:bit®. It is powered by two CR2025 or CR2032 batteries. An additional buzzer can be used as output connection for the micro:bit.
Whadda
5410329730192
5-7 Days
WPSH006
Weight: kg

Whadda MOTOR SHIELD FOR MICROBIT®

This motor shield is compatible with micro:bit® and can be used to drive 2 DC motors at the same time. On top of that, you don't lose your micro:bit®'s 14 channel I/O ports because this little motor shield extends them. The motor driving chip is a TB6612 and drives a maximum of 1.2 A current.
Whadda
5410329725716
1-5 Days
WPSH203
Weight: kg

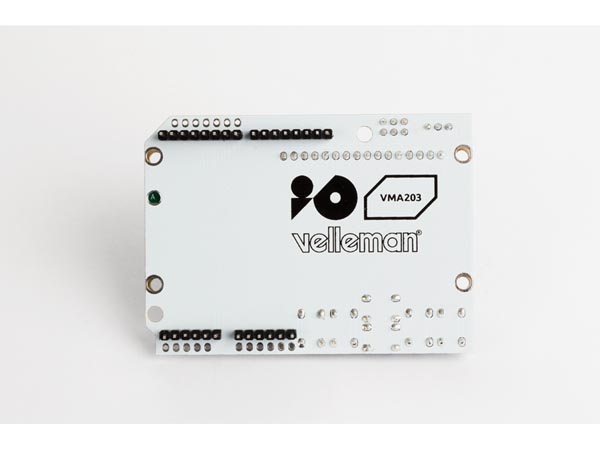

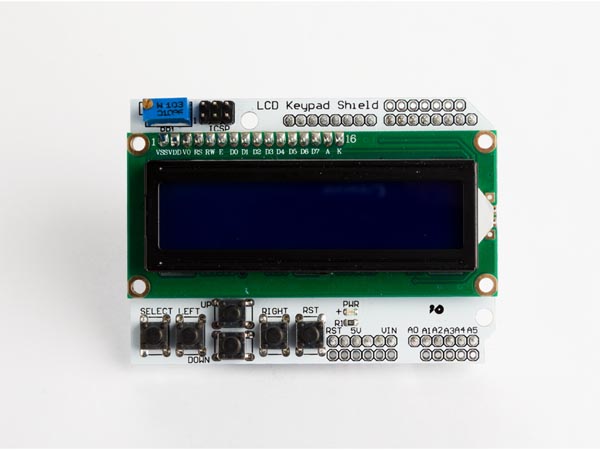

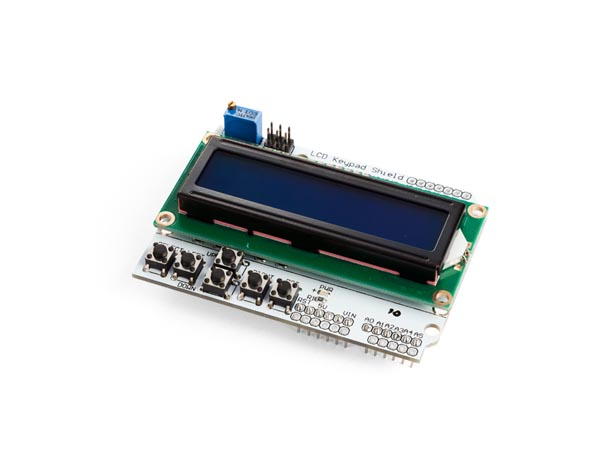

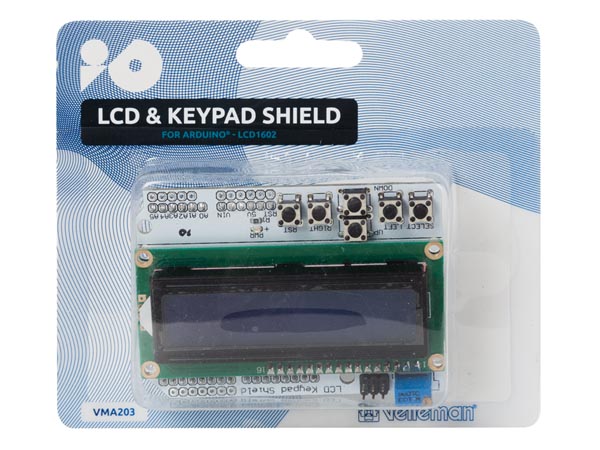

Whadda Arduino™ LCD (1602) & Keypad shield

Replacement for Velleman VMA203

The 16x2 LCD and keypad shield for Arduino Uno, Mega, Diecimila, Duemilanove and Freeduino boards.
