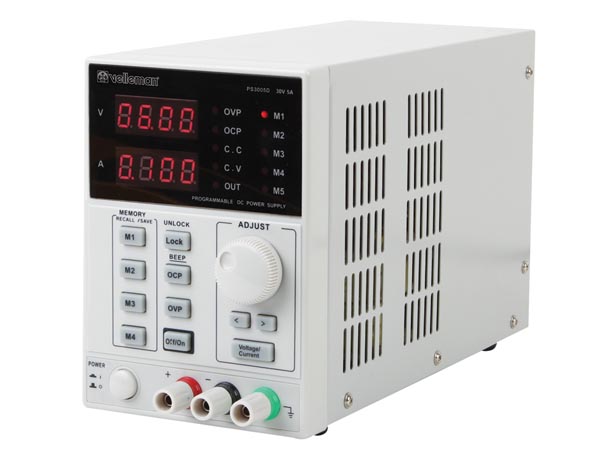

0-30V DC 0-5A Programmable Bench Power Supply PS3005D

HQ Power
461-580
5410329473068
  • Description
  • More Details
  • Specifications

0 to 30V, 0 to 5A Programmable power supply unit. The PS3005D features: A dual LED display for voltage and current, coarse and fine adjustments of voltage and current. It also has protection mode: voltage or current limiting. Output connectors: 4mm banana plug (non insulated), organic glass front panel / other panels made of steel, memory: 5 programmable memories, computer connectivity: PC remote control via USB or RS232, software included for Windows XP, Vista and W7 (32bits + 64bits).

  • memory: 5 programmable memories
  • computer connectivity: PC remote control via USB or RS232
  • software included for Windows XP, Vista and W7 (32bits + 64bits).
  • fuse-protected
  • colour: white-grey



    Click to open Manual
    Click to Download Software

  • Output Voltage: 0 - 30Vdc
    Ripple Voltage: 2mV
    Output Current: 0 - 5A
    Power Supply: 230Vac
    Dimensions: 110 x 156 x 260mm
