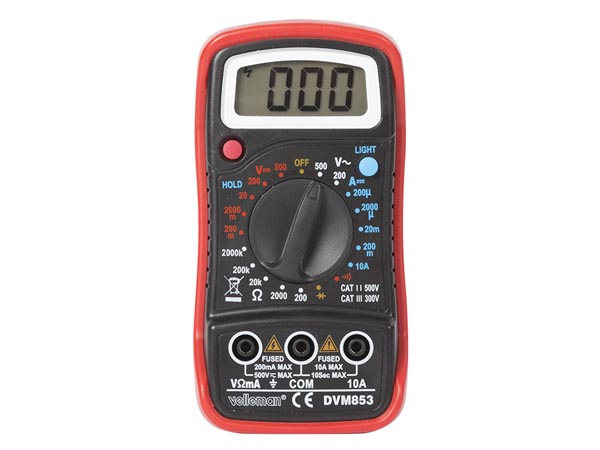

Velleman DVM853

DMM with automatic polarity indication and 3 ½-digit LCD display, measurements: DC current up to 10A, AC and DC voltage up to 600V, resistance up to 2Mohm, diode and continuity test with buzzer, data-hold function and backlight. Supplied with with protection holster & test leads. CAT. II 500V / CAT. III 300V

  • DC voltage: 0-200 mV / 2 V / 20 V / 200 V / 500 V
    • basic accuracy: ± (1.0% rdg + 2 digits) , ± (1.2% rdg + 2 digits) for 500 V range
    • input impedance: 1 MOhm
    • overload protection: 500 V DC or AC rms
  • AC voltage: 0-200 V / 500 V
    • basic accuracy: ± (1.5% rdg + 3 digits)
    • input impedance: 450 kOhm
    • frequency range: 40-500 Hz
    • overload protection: 500 VDC or AC rms
  • DC current: 0-200 µA / 2 mA / 20 mA / 200 mA /10 A
    • basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range; ± (2.0% rdg + 3 digits) for 10 A range
    • overload protection: 0.5 A / 500 V fuse for µA and mA range; 10 A / 500 V for 10 A range
  • resistance: 0-200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm
    • basic accuracy: ± ( 1.0% rdg +5 digits); ± (1.0% rdg + 3 digits) for 2 kOhm to 200 kOhm range, ± (1.5% rdg + 3 digits) for 2 MOhm range
    • overload protection: 0.5 A / 500 V fuse
  • audible continuity measurement: built-in buzzer sounds if resistance is less than 50 Ohm
    • test voltage: approx. 1.8 V
  • diode measurement: test forward voltage of diode
    • forward DC current: approx. 10 µA
    • reversed DC voltage : approx. 1.8 V
  • overrange: yes
  • continuity buzzer: yes
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 3 1/2
  • LCD display:
    • size: 54 x 27 mm
    • digits: max. 1999
  • data hold: yes
  • backlight: yes
  • auto power-off: no
  • dimensions: 138 x 67 x 30 mm
  • weight (with battery): 120 g
  • power supply: 2 x AAA LR03 (incl.)
  • operating environment:
    • temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • humidity: < 80% RH
  • storage environment:
    • temperature: -20 °C to 60 °C (-4 °F to 140 °F)
    • humidity: < 90% RH
  • fuse:
    • F0.5 A / 500 V 5 x 20 mm
    • F10 A / 500 V 5 x 20 mm
  • test lead probe : CAT III 600 V, 10 A, L = 70 cm
  • IP rating: IPX0
Dimensions: 68 x 138 x 30mm
Power Supply: 9Vdc Battery (included)
No of Ranges: 19
Range Mode: Manual
Extra Features: Transistor Hfe, Buzzer, Data-Hold, Backlight
