Velbus 0-10V RGB LED Dimmer Module VMBRGBDC

Velleman
VMBRGBDC
5410329440817
    1-5 Days
  • Description
  • More Details

No Longer Available

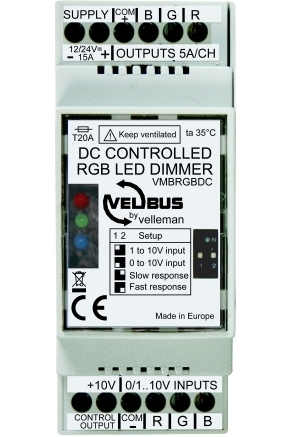

The Velbus VMBRGBDC is 3-channel 5A-12V/24V LED dimmer for dimming LED strips. Create an atmosphere which suits you best or let your lights dim slowly to avoid unexpected surprises. It is also possible to simulate a sunrise which makes waking up a lot more pleasant! Additional software to up grade and improve this product is available from the Velleman support section on there website.

Features

  • 3 channel 0..10VDC PWM DC dimmer
  • selectable: 0..10VDC or 1..10VDC operation
  • selectable fast / slow response
  • required 0..10V (1..10V) controller: VMB4DC

Specifications

  • PWM frequency: 90Hz
  • power supply: 12-24VDC
  • max output current: 5A /channel
  • DIN-rail enclosure: 2 modules wide

    Manual

    Catalogue

    Software
