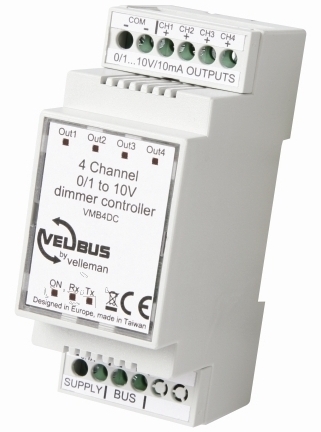

Velbus 4-Channel 1-10 Controller VMB4DC

Velleman
VMB4DC
5410329436759
    1-5 Days
  • Description
  • More Details
The VMB4DC can be used to control various dimmers or fixtures. It can drive any make of 0(1) to 10V power dimmer. Velbus signals and supply are completely isolated from output channels.

Features

  • different operation modes: moment control, on/off control, timers, slow on/slow off, dimming, moods...
  • Free programmable timer functions (using Velbus Link software and USB/RS232 interface: VMB1USB, VMB1RS or VMBRSUSB)
  • 0 to 10V output or 1 to 10V output possibility
  • 4 independent adjustable channels
  • 250 possible id addresses
  • on board buttons for testing purposes
  • velbusĀ® connection

Specifications

  • 2 Modules wide on the DIN rail
  • required power supply: 14V (12...18VDC allowed)
  • firmware upgradeable through the Velbus system
  • power consumption: 100mA max. (45mA standby)
