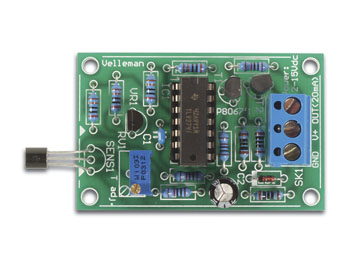

Universal Temperature Sensor Kit K8067

Velleman
K8067
5410329325930
    1-5 Days
  • Description
  • More Details
  • Specifications
Available pre-assembled: VM132

  Constructional Kit: Average

Applications include measurement of indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc... Monitor temperatures in processes, put a temperature readout on your website, check your pools temperature etc
  • range: -20° ~ +70°C
  • output: 0 ~ 20mA current loop
  • output voltage compliance: 10V
  • accuracy: 2° full range
  • one single adjustment
  • 3-wire system: GND, +V and OUT


    Software Manual
    Click to Download Click to open

  • Dimensions: 55 x 35 x 15mm
    Power Supply: 12Vdc (for 0-5V out), 15Vdc (for 0-10V out) / 15mA
