Relay Output Module (for K8006) Kit K8027

Velleman
K8027
5410329216641
    1-5 Days
  • Description
  • More Details
  • Specifications

  Constructional Kit: Normal

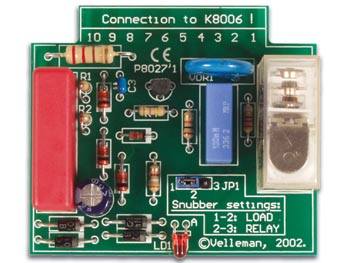

This switching module can be plugged into our K8006 base unit. Can be used to switch lamps or other domestic loads. To be controlled via push buttons, switches or one of our control modules or kits such as the K8046 touch screen keyboard, the K8000 PC interface, etc
  • for use with K8006 Base unit for home modular light system
  • suited for both resistive and inductive loads
  • can be operated from an external push button & open collector through: ex. K6711/K8050 - K8023 - K8000 - K8046
  • max. load: 2.5A (275W/110V - 575W/230V)

    Manual
    Click to open

  • Dimensions: 65 x 57 x 25mm
    Power Supply: 110-240Vac 50/60Hz
