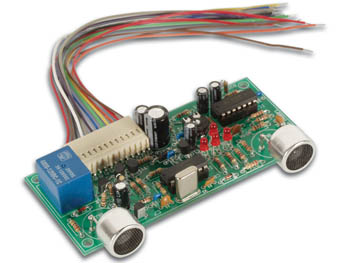

Velleman Ultrasonic Radar Module VM125

    1-5 Days
  • Description
  • More Details
  • Specifications

 tick  Module: Pre-assembled

Buzzer output: fast / slow / continuous. Distance indication with 3-LED-bar, adjustable alarm distance, LED alarm indicator, dry contact NO/NC relay. Applications: robot projects, object detection, distance measuring, parking aid, security systems.
  • range: 20 ... 250cm
  • frequency: 40kHz
  • digital output: 5V (50mA max.)
  • analogue output: 0...5V (5mA max)
  • buzzer output: 12V (100mA max.)
  • relay contacts: 1A low voltage NO/NC
  • current consumption: 200mA max.

    Click to open Manual
  • Dimensions: 110 x 50 x 18mm
    Power Supply: 12Vdc
