Velleman
K8800
EAN: 5410329673345

Velleman Vertex Delta 3D Printer Kit K8800

  • No Stock
  • Description
  • More Details

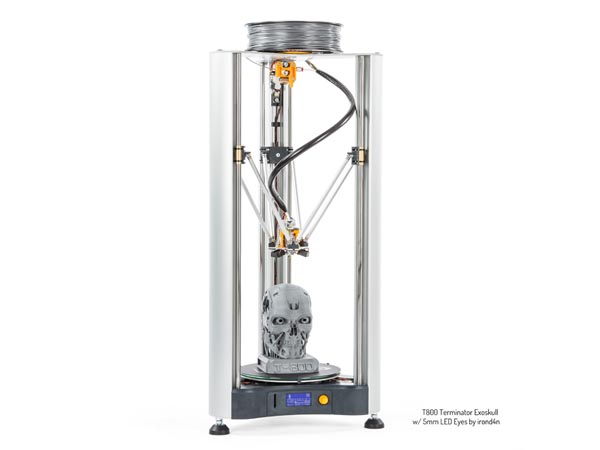

The Vertex Delta is an all-round and reliable 3D printer designed to print refined objects to complete your projects.

Aside from the excellent print quality and user-friendliness, the Vertex Delta also comes with a lot of innovative perks to make your 3D printing experience more engaging and pleasant.

Advanced safety features:

  • A filament run out detector
  • A mid print filament replacement function
  • Automatic calibration and bed compensation
  • Hybrid Kit - easy assembly, no soldering.


This Vertex comes as a hybrid kit which means that after a straightforward and quick assembly, your Delta 3D printer is ready to serve you. And don't worry about a precise build, because this device will take care of all necessary procedures to ensure a perfect first print.

Choose for reliability and for making quality 3D projects, choose Vertex and make it happen!



  • Printing:
    • print technology: Fused Filament Fabrication (FFF - FDM)
    • layer resolution: standard 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
    • large build volume: 200 mm build platform diameter, 225 mm build height
    • print speed: 20-50 mm/s (can go up to 75 mm/s)
    • travel speed: 180-200 mm/s

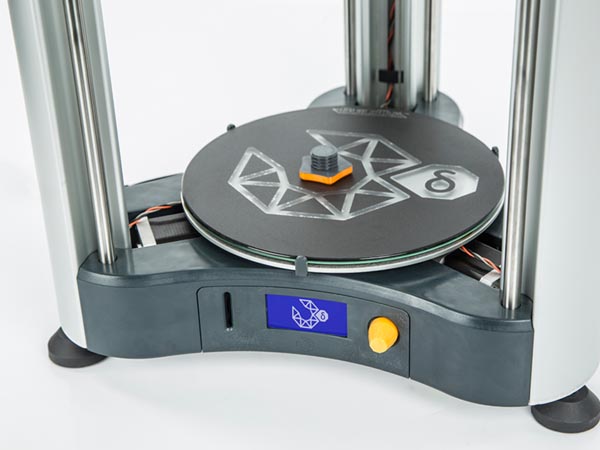

    • build plate surface: removable layer of BuildTak™ (K8800-BT)
    • filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm) - open filament policy
    • prints: PLA, ABS, TPU, PET and others
    • nozzle: E3D compatible
    • nozzle diameter: 0.35 mm (one nozzle supplied)
    • maximum nozzle operating temperature: 295°C
    • bed compensation: automatic bed compensation performed by the nozzle (no manual calibration needed)
    • calibration: automatic first-time set-up calibration
    • couplers: backlash free magnetic effector-couplers
    • advanced safety features: auto shutdown when print head detaches or temperature is incorrect (most unlikely)
    • filament run out detector: automatic pause and reload when printer runs out of filament
    • change filament function while printing: this means that you can print objects with multiple filaments/colours
    • effective pause function: pause your print job without nozzle leakage
    • end stops: infrared based end stops
  • Software:
    • firmware: modified Open Source Marlin 3D Printer, firmware is user upgradable
    • software: custom Repetier version (Windows) - Cura profiles (Mac)
  • Hardware:
    • dimensions: W 35 x D 35 x H 77 cm (without filament spool)
    • frame: rigid aluminium extrusion risers and 4 mm aluminium top and bottom plates for a sturdy frame and precision ground 100 mm vertical rods and brass bushings
    • fully Open-Source (hard- and software)
    • weight: 10 kg
    • ambient operating temperature: max. 30°C
    • storage temperature: -10°C to +50°C
    • hybrid kit: quick and straightforward build, no soldering required
  • Electrical:
    • communication: SD card or USB 2.0 (automatic SD card recognition)
    • controller board: AVR ATmega2560 based
    • AC input: 100 - 240 VAC 50-60 Hz 90 W max.
    • display: 128 x 64 px graphic display with blue backlight
