vttest15_front

Lead & Cable Testers, Trackers

High quality testers & trackers for cables and leads.
!
Velleman
5410329364083
1-5 Days
123-210
Weight: kg

Audio Cable Tester - 6 Way VTTEST14

Professional cable and lead tester, enables quick and convenient continuity testing for all types of audio cables. Rugged metal case for ultimate roadworthiness, long life and reliability.

  • Banana

  • RCA
  • Speakon
  • XLR plugs and sockets
  • 5-Pin Midi
  • 1/4" Jack (including TRS)

Six way rotary switch selects type of lead, LED's indicators confirm the condition of the cable under test. Built-in battery and ground condition test.

Power Supply: 9Vdc Battery (not included)
Dimensions: 160 x 66 x 120mm
Velleman
5410329391355
1-5 Days
123-215

Audio Cable Tester - 10 Way VTTEST15

Professional cable and lead tester, enables quick and convenient continuity testing for all types of audio cables. Rugged metal case for ultimate roadworthiness, long life and reliability.

  • Banana

  • RCA
  • Speakon 4 and 8 Pole
  • 3 and 5 Pole XLR plugs and sockets
  • 5-Pin Midi
  • 3.5mm Jack
  • 1/4" Jack (including TRS)

Nine way rotary switch selects type of lead, LED's indicators confirm the condition of the cable under test. Built-in battery and ground condition test, supplied with battery and set of test probes.

Power Supply: 9Vdc Battery (not included)
Dimensions: 190 x 60 x 110mm
Velleman
5410329575854
1-5 Days
123-256
Weight: kg

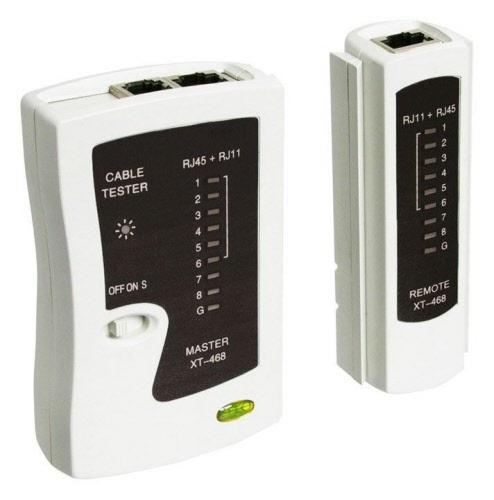

LAN Tester for RJ45, RJ12, RJ11, RJ10 VTLAN6



The VTLAN6 LAN tester is suitable for various cable types is indispensable in network installation and maintenance activities. This compact device can be used for testing network or telephone cables RJ45 (8P8C), RJ12 (6P6C), RJ11 (6P2C), RJ10 (4P4C) and for most types of computer cables.

Power Supply: 9Vdc Battery (not included)
Dimensions:
Velleman
5410329466237
1-5 Days
123-260
Weight: kg

Cable Tracker with Tone Generator VTTEST11N



The VTTEST11N Cable Tracker, consists of a tone generator which generates a single 1500Hz or dual 1300-1700Hz square wave.

The receiving probe, which detects the signal from the tone generator. Enables the operator to determine the cable route and if there is a break or fault in the cable.

The Cable tracker has audible and visual indication. Supplied with carry bag, croc-clips and RJ network plug.

Dimensions: 238 x 43 x 26mm Receiver
145 x 35 x 25mm Probe
Power Supply: 9Vdc Battery
