Dimmers

!
Velleman
5410329067120
1-5 Days
K6712
Weight: kg

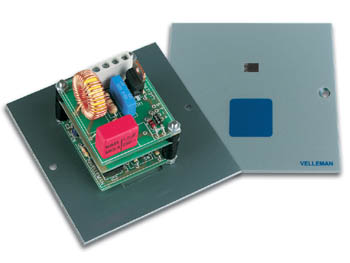

IR Remote Controlled Dimmer Kit K6712

  Constructional Kit: Advanced
This one channel IR receiver/dimmer works together with the 15 channel IR transmitter (K6710 & K8049). The receiver code can be set to 1 of the 15 transmitter codes so that 15 receivers can be operated (K6712 and/or K6713) independently of each other. Thanks to its compact design this kit fits into a standard light switch housing.
Velleman
5410329080266
1-5 Days
K8026
Weight: kg

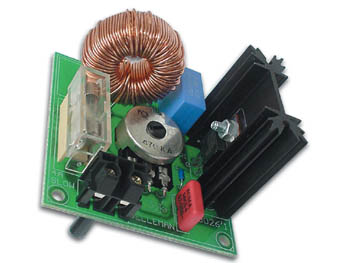

Suppressed 3.5A Dimmer Kit K8026

  Constructional Kit: Normal
Due to its small size, this small dimmer easily replaces an existing switch, permitting you to vary the brightness of a light or group of lights. The dimmer may also be used to adjust the speed of a motor, vacuum cleaner, or any other motor with carbon brushes. A mains suppresser is provided eliminating undesirable RFI. It is not suitable for halogen lamps.
Dimensions: 60 x 60mm (PCB)
Power Supply: 110-230Vac
Velleman
5410329080280
1-5 Days
K8028
Weight: kg

Multifunction Dimmer Kit K8028

  Constructional Kit: Advanced

Microcontroller technology with 13 different functions: impulse switch, staircase light control, slow ON/OFF dimmer, interval timer, speed adjustment for fans, etc… Suitable for both resistive and inductive loads (light bulbs, high-voltage halogen lighting and low-voltage halogen lighting with ferromagnetic transformer) "Soft Start" prolongs the life of the bulbs, an advanced security system with fault indication automatically deactivates the module if the load or no-load behaves too inductively. Can be operated from several locations, simply by the parallel connection of push buttons. 2 delay times (anywhere between 5 sec. to 2 hours each) can be programmed through the learning mode. Memory is protected against power failures, equipped with fuse and key for function selection. Mains suppressor according to EN55015 norms.

Dimensions: 100 x 82 x 36mm
Power Supply: 110-125 or 220-240Vac, 50-60Hz
Velleman
5410329321789
1-5 Days
K8038
Weight: kg

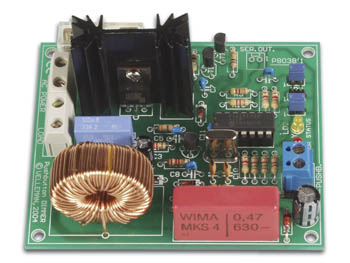

Power Dimmer, Push-Button Controlled Kit K8038

  Constructional Kit: Advanced

A powerful high-quality dimmer, suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional (wire wound) transformer. Easy push-button operation for dimming of light sources. Phase control can be disabled, non-volatile memory for last set light intensity, lots of safety features to make lamps last as long as possible, such as "oftstart" and automatic turn-off after 12h or after 20min at too low intensity. Transformer protection in case of defective light sources, LED status indication.

Dimensions: 90 x 75 x 40mm
Power Supply: 110-125 or 220-240Vac 50/60Hz
Velleman
5410329324537
1-5 Days
K8064
Weight: kg

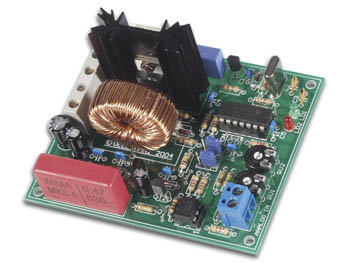

DC Controlled Dimmer Kit K8064

  Constructional Kit: Advanced

Simple brightness adjustment by means of a DC voltage, optically isolated adjustment input. Pre-set adjustment for full brightness, suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer. "Soft start" feature to ensure lamp longevity, transformer protection in case of defective light sources. LED status indication. Compatible with our computer interface cards: K8000, K8055.

Dimensions: 90 x 75 x40mm
Power Supply: 110-125 or 220-240Vac 50/60Hz
Velleman
5410329409210
1-5 Days
K8091
Weight: kg

LED Clock with Light Dimmer Function Kit K8091

  Constructional Kit: Advanced
The K8091 is an attractive LED clock with output connection for a light. From 15 minutes before the set time, the light intensity of the connected appliance will increase up to full power, at set time alarm beeps will be heard. The beep length is gradually built up so you will not be startled by a sudden alarm signal.
Dimensions: 92 x 45 x 101mm
Power Supply: 220-240Vac
