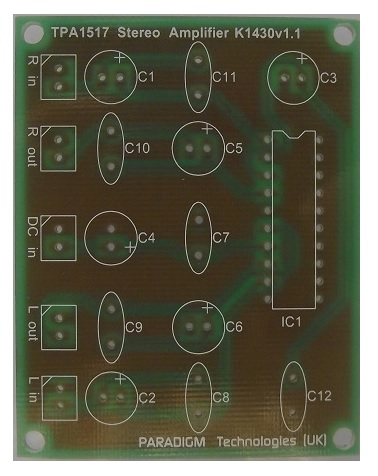

The kit uses a TPA1517 stereo audio power amplifier that contains two identical amplifiers capable of delivering up to 6W per channel of continuous average power into a 4-O load at 10% THD+N or 5 W per channel at 1% THD+N. The gain of each channel is fixed at 20dB. This kit uses the 20-pin thermally enhanced DIP package (NE). Paradigm Technologies have designed a fully symmetrical PCB around the TPA1517 chipset to ensure that maximum performance is obtained
Ultra SE Kit - This kit upgrades the standard kit with very high quality passive components and also includes polyester bypass capacitors. Very high quality low ESR electrolytic capacitors, very low temperature coefficient metal film resistors, alongside the thermally stable very high quality bypass capacitors, enables this kit to deliver maximum performance and sound quality.

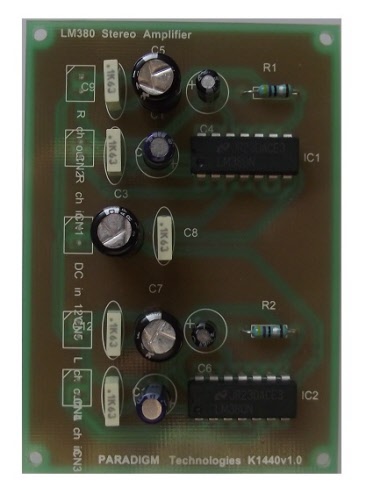

The kit uses LM380 audio power amplifiers and contains two identical amplifiers capable of delivering a gain internally fixed at 34 dB with a maximum peak current capability of 1.3A. This kit uses the 14-Pin PDIP to allow a greater max. package dissipation of 8.3W. Paradigm Technologies have designed a fully symmetrical PCB around theLM380 chipsets to ensure that maximum performance is obtained.

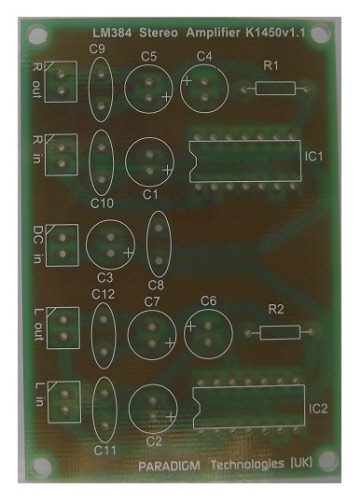

The kit uses LM384 audio power amplifiers and contains two identical amplifiers capable of delivering a gain internally fixed at 34 dB with a maximum peak current capability of 1.3A. This kit uses the 14-Pin PDIP to allow a greater max. package dissipation of 8.3W. Paradigm Technologies have designed a fully symmetrical PCB around the LM380 chipsets to ensure that maximum performance is obtained.

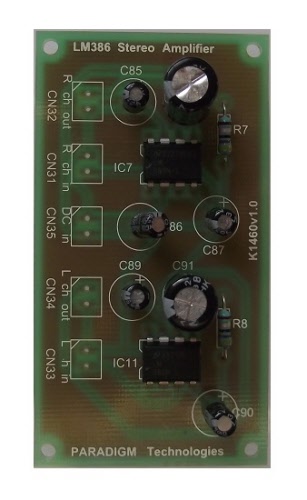

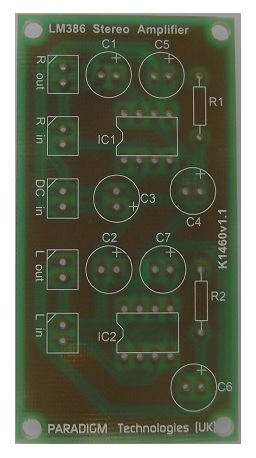

The kit uses LM384 audio power amplifiers and contains two identical amplifiers capable of delivering a voltage gain of 26 dB with a bandwidth of 300kHz. This kit uses the 8-Pin PDIP to allow a package dissipation of 1.25W. Paradigm Technologies have designed a fully symmetrical PCB around the LM386 chipsets to ensure that maximum performance is obtained.
